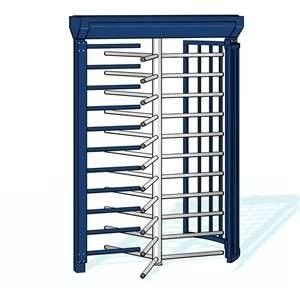

Entrance & exit management full height turnstile with automate reset function for building
Our series full height turnstile product range consists of several models that all offer excellent security control and can be installed indoors or outdoors depending on their type. Our full height security turnstiles, suitable for controlling unsupervised areas, are available in a wide range of finishes and configurations to suit almost all buildings and environments.
The full height turnstile is available in stainless steel, brushed and polishing finishes. Access card reader attachment plates are available.
The turnstile is available with manual or electric operation. Electrically controlled versions have state-of-the-art technology. A rugged multi-function controller, electronic rotation detection, bi-directional interface and time out functionality are all standard on electrically controlled models
Application:
•Station, wharf, tourist attractions, buildings, entrance and exit management of factory
•Recount channel management of exhibition, swimming pool
•Time attendance, access control/consumption management for enterprise or business unit
•Special channel management system
Advantages:
1. Being compatible with several control devices IC/ID card, magcard, bar code, fingerprint and etc.
2. Unlocking is quick and reliable.
3. The direction of rotation: single direction, bi-direction(optional): several working modes are optional, namely two-direction card reading for limiting flow capacities, or one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. Emergency-escape function:the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is no or off.
6. Counting Function of the controller, LED figure display function (optional)
7. Memory Function attached in the controller
8. With standard input, output interface
Specifictions:
|
Technical parameters
|
|
Housing material
|
202 stainless steel
|
|
Dimension
|
L1480*W1500*H2300mm
|
|
Weight
|
230Kg
|
|
Power
|
24V DC
|
|
Voltage
|
110V-240V
|
|
Frenquency
|
50/60Hz
|
|
Communication interface
|
RS485
|
|
Input interface
|
Dry contact signal/12V signal/DC 12V
|
|
Normal life-span
|
3 million
|
|
Transit speed
|
40 persons/min
|
|
Working environment
|
Indoor/outdoor
|
|
Temperature
|
-10 to 50
|
|
Relative humidity
|
≤90% no condensation
|
