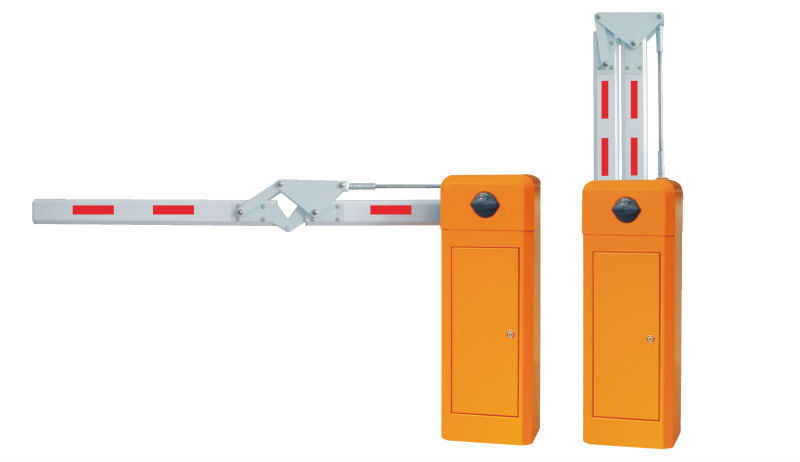

High Quality Folding Arm Anti-rust Parking Lot Barrier Gate

High Quality Folding Arm Anti-rust Parking Lot Barrier Gate

  • High Quality Folding Arm Anti-rust  Parking Lot Barrier Gate
High Quality Folding Arm Anti-rust  Parking Lot Barrier Gate
Product Details:
Place of Origin: Boom Barrier Gate Made In China
Brand Name: WTD Boom Barrier Gate
Certification: CE
Model Number: WTD-d102
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton or Wooden BOX
Delivery Time: 10-15 day
Payment Terms: T/T ,Western Union,Paypal etc..
Supply Ability: 1000 Set/Month
Contact Now
Detailed Product Description

Product Name:

High Quality Folding Arm Anti-rust  Parking Lot Barrier Gate


High quality automatic boom barrier gate

1.Fast speed.
2.Double safety limit
3.Three operation modes: Remote control,push button,manually operation.
4.Die-casting aluminum alloy motor,Waterproof,anti-aging ,Anti-sunshine .
5.runs stable and reliable.

Product Description:
  stable and reliable boom barrier gate

Running time1 sec3 sec6 sec3 sec6 sec3 sec6 sec3 sec6 sec
Boom typeStraight90°folding180°folding2 fence3 fence
Max boom length3m4.5m6m3m5m3m5m4.5m4m
Boom weight3kg4.5kg5kg6.5kg8kg9kg11kg7kg7.5kg
Housing dimension 932mm×320mm×280mm
Voltage220V±10%, 110V±10% 50/60HZ
MaterialGalvanized plate or Cold roll plate, 2mm thickness sheet
3 years without rust, shedding and fading
Arm TypeStraight Arm:  Size 45×100mm , Folding arm, Two or three Fence Arm
Arm Materialaluminum alloy
Packing Size1040mm×450mm×380mm, with seven layers carton case
inside with air bubble film for protection
Working temperature-40°C~+75°C
Protection gradeIP44
Remote Control DistanceUsually more than 30 meters, if there is less obstacles, even 50 meters or more
Spring And BearingHeat Treatment: more durable, more than 5 million times through operation testing

Technical Parameters :

1.This Boom Barrier  is widely used for the facilities of parking, traffic or toll system.
2.Arms can be chosen from 3 meters to 6 meters.
3.Machine core with compression spring, effectively avoids the accidents caused by spring breaking
4.Die-casting aluminum alloy motor, precision and good at thermal radiating
5.Bidirectional self-locking function.
6.Time protection function.
7."Gate open" command has high priority.
8."Close" command memory function available.
9.Remote control interface, Remote control emittercan be equipped.
10.Three operation modes: Remote control,push button,manually operation.
11.Loop detector can be equipped.
12.Infrared detecting interface, infrared detecting device can be equipped.
13.Wave pressure device is controlled by wave pressure switch, so as to protect car or person from smashing.
14.The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch(wire control), traffic light.Illuminated barrier boom have the function of decoration and caution(option).


15.Barrier gate casing is made of advanced water-proof structure and anti-aging spray treatment, durable, Simply structure, runs stable and reliable.
  1. 1. Professional Manfacturer for more 8 years
  2. 2. Mould Production, High Accuracy
  3. 3. Heat Treatment, more durable than normal
  4. 4. Better Service from Professional Work Team
  5. 5.Our newest machine core, esier structure, stable function, esier operation.
