Shenzhen Turnstile Technology Co., Ltd.
High quality, Best service,Reasonable price.
 |
| Place of Origin: | China |
| Brand Name: | Tondahzhi |
| Certification: | CE |
| Model Number: | TDZ-Z706 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 3000-6000per piece |
| Packaging Details: | paper carton and wooden case |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500 pieces per month |
| Access Speed: | 30people/ Second | Material: | Stainless Steel |
|---|---|---|---|
| Size: | 2400*1500*2300mm | Weight: | 660kgs |
| Highlight: | turnstile security systems |
||

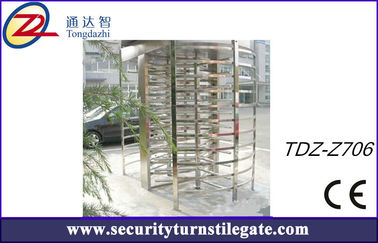

Waterproof Electronic Turnstile Security Products , Single Turnstile full height
Robustness
. Long-life mechanical construction
. Housing in superior-quality stainless steel
. Flexibility
. Removable end covers for easy integration of any type of access control device
. Numerous configurations covering all cases of pedestrian access control
|
Framework |
304 Grade Stainless Steel |
|
Colour |
Stainless Steel Brushed |
|
Box size |
2450x1500x2300(mm) |
|
Access Width |
≤600mm |
|
Protection Grade |
IP54 |
|
Power supply |
AC220C±10V, 50HZ |
|
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
|
Communication Connection |
TCP/IP |
|
Working Temperature |
minors 40°C ~ 60°C |
|
Humidity |
≤90%, No Condensation |
|
Pass speed |
30persons/min(by swiping IC/ID Card) |
|
Support |
IC /ID card reader , barcode reader , fingerprint, push button,face recognition,hand punch, token reader |
|
The turnstile is compatible with card reader which works with Wiegend interface |
|
|
Quantity of users |
20000Users |
|
direction |
single walkway or double walkway |
Product functions and features
1, stainless steel machine case;
2, standard interface which easy installs external reading card equipment etc;
3, access way can be adjustable;
4, infrared detection,illegal broke in,followed alarm,anti-clipping function etc optional;
5, an emergency control the boom to rebound;
6, external dimension: 2450x1500x2300(mm)
7, reading and writing way:IC card,ID card,mag card,bar code reader.
