Stainless steel Security barriers full height turnstile for access control

Product Details:

Place of Origin:	China
Brand Name:	WEJOIN
Certification:	CE, ISO,
Model Number:	WJFT610

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Wooden Case
Delivery Time:	3-15 days depending on the quantity
Payment Terms:	T/T, Western Union
Supply Ability:	1, 000 set/month

Contact Now

Detailed Product Description

Smart Card:	IC ,ID ,Magcard ,bar Code	Material:	304 / 202 / Cold Rolling Iron Painted
Volatge:	110v/220v	Type:	Automatic Turnstile
Package:	Wooden	Working Tempraturen:	-10°C~50°C
High Light:	access control barrier , Automatic Systems Turnstiles

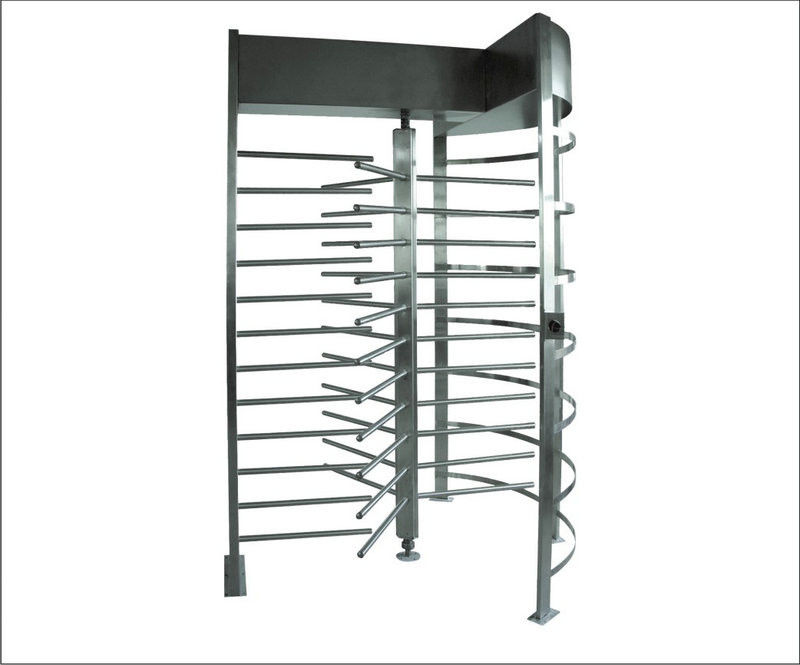

Stainless steel Security barriers full height turnstile for access control

Description:

1. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

2. Unlocking is quick and reliable.

3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.

4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.

7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface

Specifications:

Model	WJFT601	WJFT602	WJFT610	WJFT611
Item
Material of Housing	201 / 304 Stainless Steel
Thickness of Housing	2.00mm

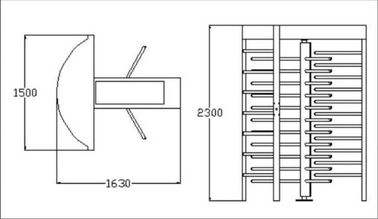

Dimension of Housing	1630×1500×2300	1400×	2800×	2150×
(L×W×H mm)		1200×2300	1813×2400	1260×2300
Length of Pole	610mm	470mm	610mm	470mm
(out of framework)
Net Weight	170kg	250kg	650kg	560kg
Max Load-bearing of Pole	80kg	30kg	80kg	30kg
Driving Force of Pole	3kg
Produce Processing	Laser cutting fully controlled by computer
Power Supply	220V±10%, 110V±10%
Frequency	50/60HZ
Transmission of Pole	Digital Transmission
Light Indicator	Direction indicating
Rotating Direction	Single Direction, Double Direction (optional)
Time for Opening	0.2 second
Communication Interface	Standard RS485 (distance less than 1200 meters)
Input Interface	Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed	30~40 persons/min
Working Environment	Indoor / Outdoor (Shelter)
Working Temperature	-10°C~50°C
Relative Humidity	≤90%, no condensation
