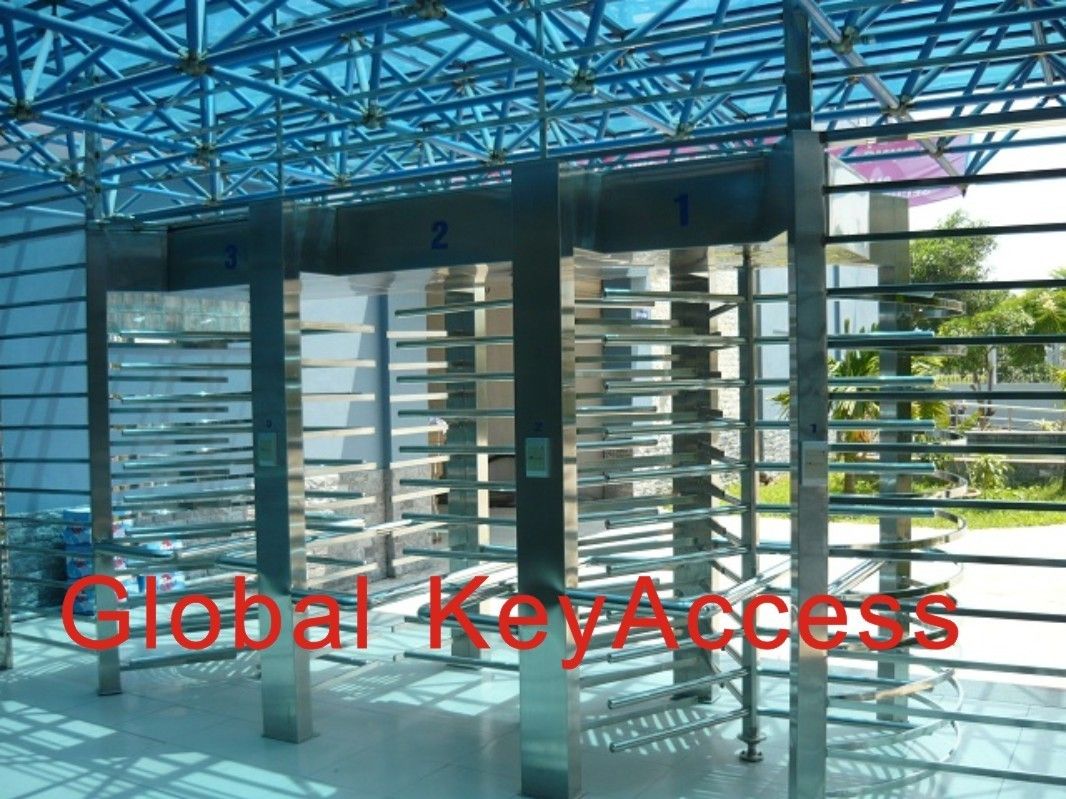

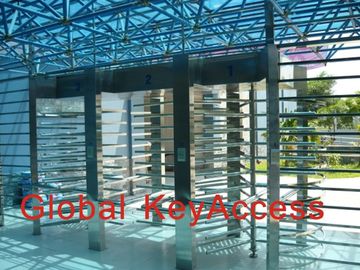

Security Full Height Turnstiles Three Lanes Double Direction Access Control For Factory Use

Security Full Height Turnstiles Three Lanes Double Direction Access Control For Factory Use

  • Security Full Height Turnstiles Three Lanes Double Direction Access Control For Factory Use
Security Full Height Turnstiles Three Lanes Double Direction Access Control For Factory Use
Product Details:
Place of Origin: China
Brand Name: Globalkeyaccess
Certification: CE
Model Number: GKA2042(2-lane)
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Packed in carton
Delivery Time: 5 working days after received your payment
Payment Terms: T/T or western Union, paypal
Supply Ability: 1,00sets per month
Contact Now
Detailed Product Description
Product Name: Full Height Turnstiles Application: Access Control System
Arm Length: 500mm Arm Divided Degree: 90° Or 120°
Self-lock: Yes Fail Secure Or Safe: Fail Secure
Direction: 1 Way Or 2 Way Weight: 150kg
High Light:

security turnstiles

,

automatic turnstile

304 Stainless Steel 2 Lane Full Height Turnstiles Single Or Double Way Optional





Specifications:



Types

1-lane, 2-lane, 3-lane

Material

Stainless steel #304

Arm divided degree

90° or 120°

Arm length

500mm

Application

Access control system

Access method

Card, card+password, fingerprint

Self-lock

Lock after each revolving

Anti crash

Yes

Anti-tail-after

Yes

Height

2300mm

Passage width

700mm





Description:



1. Height: 2300mm

2. Passage width: 700mm

3. Arm length: 500mm, 3 arms stand by dividing in 120°/ 4 arms stand by dividing in 90°

4. Self test and alarm when function fails ( users need to read the guidance of circuit board LED status indicating instruction )

5. Re-lock, the turnstiles will deny the access request and be locked if the user doesn’t pass by within the legal period

6. Control methods: access control, fingerprint access control, barcode reader, exit button

7. LED indicator ( Green arrow & Red cross )

8. Re-positioning( auto lock ) delay, default setup is 10 seconds

9. Cabinet material: 304 stainless steel, rust proof and thickness at 1.5mm(cabinet), 2.8mm(arm).

10. Arm material: #304 stainless steel

11. Arm maximum holding force, 80Kg

12. Revolving directions: one way or two ways(default)

13. Power consumption, AC220±10% V/ 50 ±10% HZ

14. Fail safe or fail secure( default setup is fail safe, which means the arm will be unlocked when power off )

15. Package size: around 6 cubic meter/lane

16. Package weight: around 350-400kg(including wooden case)/lane





Applications:



Vehicle access control

Parking lot system



Competitive Advantage:



Manufacturer of the vehicle access control system

Could handle sharp increase orders

Reliable in various of environment

Working temperature is -30°c~80°c

OEM production is accepted
