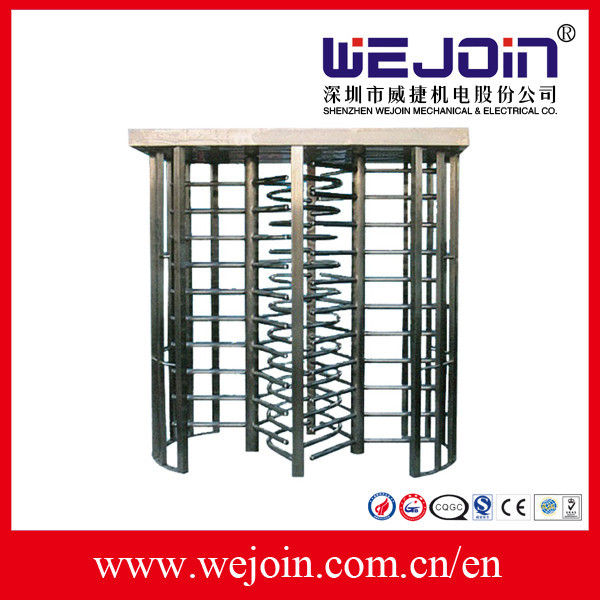

0.2 Second High speed Full Height Turnstile Systems Passage , pedestrian access control

Product Details:

Place of Origin:	China
Brand Name:	WEJOIN
Model Number:	WJFT601

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	negotiation
Packaging Details:	Wooden box
Delivery Time:	10-15 days
Payment Terms:	T/T, Western Union
Supply Ability:	50PCS/week
Trade Term:	EXW, FOB, CIF

Contact Now

Detailed Product Description

Certification:	ISO	Material:	304 Stainless Steel
Warranty:	1 Year	Color:	Silver
Type:	Full Height Turnstile	Power Supply:	AC220V/110V
High Light:	Automatic Systems Turnstiles , Controlled Access Turnstiles

304 stainless steel Automatic Full Height Turnstile Electronic Security Gate

Quick Detail:

Name: High Speed Barrier Gate ,

Feature: Manual release

Power: 80W

Net Weight: 60KG

Speed: 1 second

Application :Highway toll

Certificate: CE, ISO,

Description:

1. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

2. Unlocking is quick and reliable.

3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.

4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.

7. Counting Function of the controller, LED figure display function (optional)
8. Memory Function attached in the controller
9. With standard input, output interface

Specifications

Model Item	WJFT601	WJFT602	WJFT603	WJFT610	WJFT611	WJFT612
Material of Housing	201 / 304 Stainless Steel
Thickness of Housing	2.00mm
Dimension of Housing (L×W×H mm)	1630×1500×2300	1400×1200×2300	1630×1500×2300	2800×1813×2400	2150×1260×2300	2210×1500×2300
Length of Pole (out of framework)	610mm	470mm	510mm	610mm	470mm	610mm
Net Weight	170kg	250kg	230kg	650kg	560kg	650kg
Max Load-bearing of Pole	80kg	30kg	80kg	80kg	30kg	80kg
Driving Force of Pole	3kg
Produce Processing	Laser cutting fully controlled by computer
Power Supply	220V±10%, 110V±10%
Frequency	50/60HZ
Transmission of Pole	Digital Transmission
Light Indicator	Direction indicating
Rotating Direction	Single Direction, Double Direction (optional)
Time for Opening	0.2 second
Communication Interface	Standard RS485 (distance less than 1200 meters)
Input Interface	Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
Transit Speed	30~40 persons/min
Working Environment	Indoor / Outdoor (Shelter)
Working Temperature	10°C~50°C
Relative Humidity	≤90%, no condensation
