Durable Full Height Turnstile Security Rotary Prevent Access Passge System



Durable Full Height Turnstiles Access Passge System Security Rotary Turnstile Gate

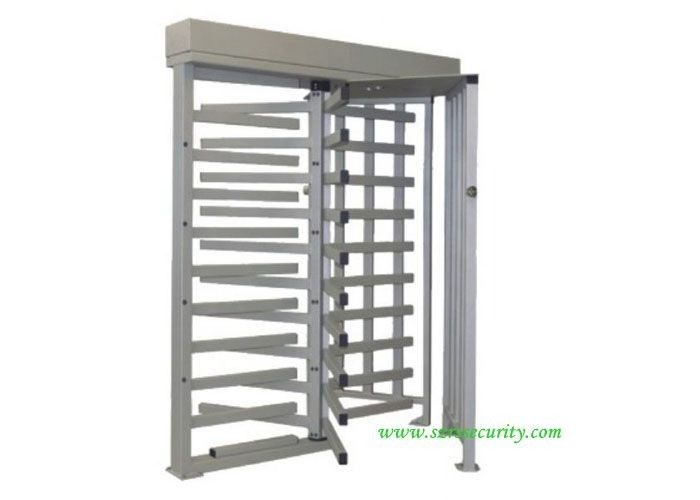

Full height turnstile Specifications



Name: Single full height turnstile RS 997



1.Steel cut by laser;



2.The least welding portion polished properly;



3.Original finish kept;



4.Instrusion and safety





Company Information





RS Security Co., Ltd established in 1999 is a high-tech enterprise which specializes in


research and development of intelligent devices and providing intelligent and information system



solution.

RS Security has created its own brand "AutoB" which is the earliest and most professional



enterprise consisting of research and development,manufacture and sales together, providing



intelligent access control equipment and safety management intelligent solution for tourist attractions



around the world, intelligent buildings, education industry, the financial industry, government



agencies, enterprises, institutions and other high-end places with the most advanced security



management service.



Full high turnstile Technical parameter:





1.Frame :304 Stainless steel



2.Dimension:90°/120°



3.Size:1500(W)*1630(L)*2310(H)mm(Size can be customized )



4.Drive: Manually operation



5.Rotation Direction : A. Bi-Directional B. Unidirectional



6.Controller:Adopt micro-computer controller can be 7.programmed according to customer needs



7.Interface: Standard input and output interfaces can be used for other integration systems



8.Signal Source: A. Dry contact B. High-low-level signals



9.Roller working Power: AC220V±10%



10.Power Supply: AC220V±10% DC24V3A±10% DC12V3A±10%



11.Environment: Indoor/Out door Temperature:-30°C -- 80°C Humidity :5% --- 95%



12.Switching Time: 1s



13.Traffic Speed: 30 person per Minute



14.Fault Status: power-off and Giving a free exit/entry path



15.Movement failure rate: 500 million trouble-free



16.Frame Protection: Waterproof Seal



17.Card Reader Location: 4



18.Installation and maintenance Access: 1



19.Optional Feature:IC/ID reader , Barcode Reader ,other R/W equipment, UPS, Infrared



detector



Material	stainless steel or Cold-rolled steel plate
Drive Mode	Inner core use 16 Bit Microprocessor, can processed by customer's requirement
Following Speed	> people /minute
Signal Interface	RS2 32 Interface
Working State	single or bi-direction
Power Consumption	1. Paused: 120Watt/Lane     2. Working state: 250Watt/Lane
Service Life	Thress millions continuous opening and closing of barrier panel
Working Temperature	0°C-65°C ( Customized available)
Communication Interface	two Card reader signals
Dimension	120 degree, 2200L × 1400W ×2300H(mm)
Net Weight	150KGS
Working Environment	Indoor, outdoor
Noise	≤65dB
Lane Width	500-600mm
Humidity	5%-90%
Open/Close Time	1 Second
Maintenance Port	1 units
Power Supply	Input AC 220V (adjustable)
Optional	DC24V ±10% 3A;   DC12V ±10% 3A
Status Indication	Allowing passing through/ Forbidden



Security turnstile Function:



1. Single/double walkway---controlled in one direction or both



2. A valid lock action can allow one passage at one time Normally open---the machine will unlock



when a valid signal is received



3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set



time can be adjusted via parameter change.



4.All the system runs stable with little noise and no mechanical impact standard port-RS485



5.Control panel with count and LED digital function



6.Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a



green arrow indicate the direction of allowable passing



7.situations where need single-direction control such as market club film theatre gymnasium subway



airport customs and etc. It can be divided into Vertical



8.Emergency configuration: The tripod will drop automatically by power off or by hand to provide a



clear walkway for escape in the event of an emergency.



All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient



space to integrate any access control system. They can be mounted with display, passage counter,



card reader, token operation, traffic lights, command console, alarm system against unauthorised



entries, interfaced with a PC through a RS232 line. The unique dropping arm feature provides a fail-



safe safety solution in case of an emergency or power failure, providing egress in case of crisis



evacuations. Durability with minimal maintenance means years and millions of trouble free passages.



The turnstile creates a secure environment in, for example, a reception area. Our turnstiles are used



in applications including stadiums and arenas, perimeter and interior security, recreation and



amusement parks, retail crowd control, transit fare collection and lobby access control.
