Place of Origin: | China |
Brand Name: | Tondahzhi |
Certification: | CE |
Model Number: | TDZ-Z716 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 3000-6000per piece |
Packaging Details: | paper carton and wooden case |
Delivery Time: | 5-7 working days |
Payment Terms: | T/T |
Supply Ability: | 500 pieces per month |
Read Way: | D Card,IC Card | Communication Interface: | RS485 Electrical Standard |
---|---|---|---|
Size: | 1500*1350*2300MM | Weight: | 350kgs |
High Light: | Single Turnstile,Football Turnstiles |

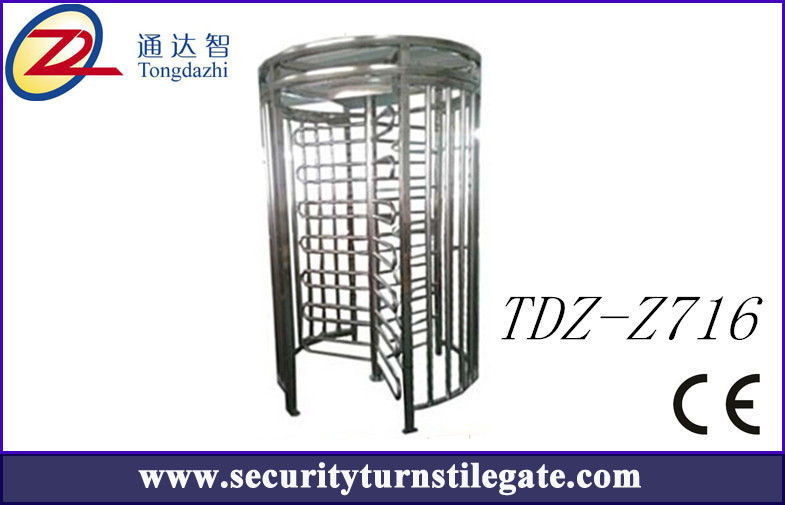

Stainless steel Mechanical Automatic Systems Turnstiles with card reader
Product Description:
Appearance GB (304) stainless steel plate stamping molding, nice shape, rust-proof and durable.And foreign standard electrical interface, bar code card, ID card, IC card reader can be easily integrated in the equipment.Access personnel civilized in order and put an end to illegal access. the satisfy requirement of fire protection system is also designed the function, in case of emergency, guarantee channels unimpeded, convenient personnel evacuation in time.
1. Structure: Frame structure / stainless steel housing
2. Production process: full computer CNC laser cutting machine production
3. External dimensions: length1500 * wide 1350 * high 2300 mm
4. Stainless steel thickness: 1.5 mm
5. Weight: around 350kg
6. Brake rod length:600mm
7. Brake rod drive mode: digital mode
8. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free
9. Re-position function. After card reading, if passenger not through within the specific time, time and the
limit passing time length can be set.
10. Access Prompt function:Red and green light prompt the passing information.
11. Using optical hole works, no delay on the input control signal
12. Working environment: indoor and outdoor with shed
13. Ambient temperature: -10 Celsius to 50 Celsius,Relative humidity: ≤90% no condensation
14 Induction card read bayonet size: equipped with standard mounting bracket, or to tailor
15. Gate opening time:0.2 second
16. Pass speed:30 persons/min
17. Communication interface: RS485 electric standard,Communication distance: ≤ 1200 meters
18. Input interface:+DC 12V level signal or DC 12V pulse signal(pulse width>100ms)
dirve current> 10 mA
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
TDZ |
Model Number |
TDZ-Z716 |
Opening Pattern |
automatic |
Size |
1500*1350*2300mm |
Thick of steel |
1.5mm |
Material |
304stainless steel |
Passing speed |
< 30 person/min |
Brake rod length |
600mm |
Communication interface |
RS485 electrical standard |
Power supply voltage |
AC220 ± 10%V, 50HZ |
Working Temperature |
-15°C ~ 50°C |
Working environment |
indoor and outdoor with shed |
